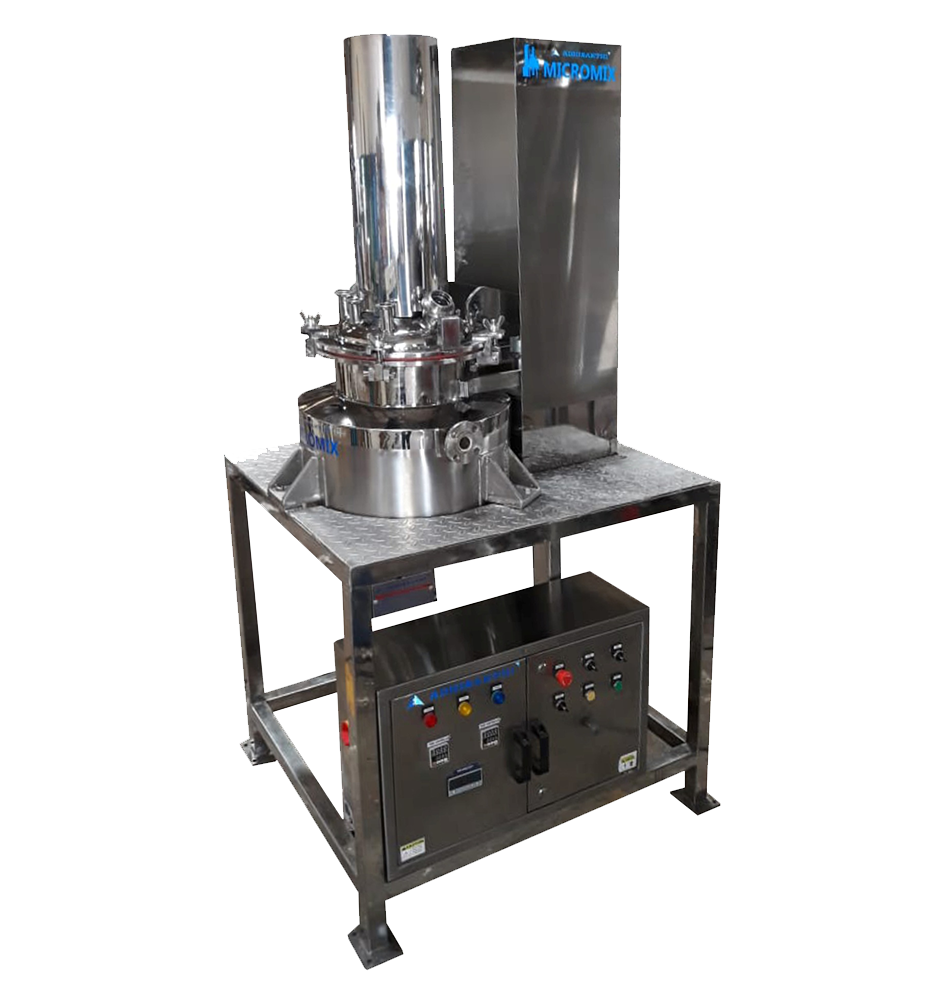

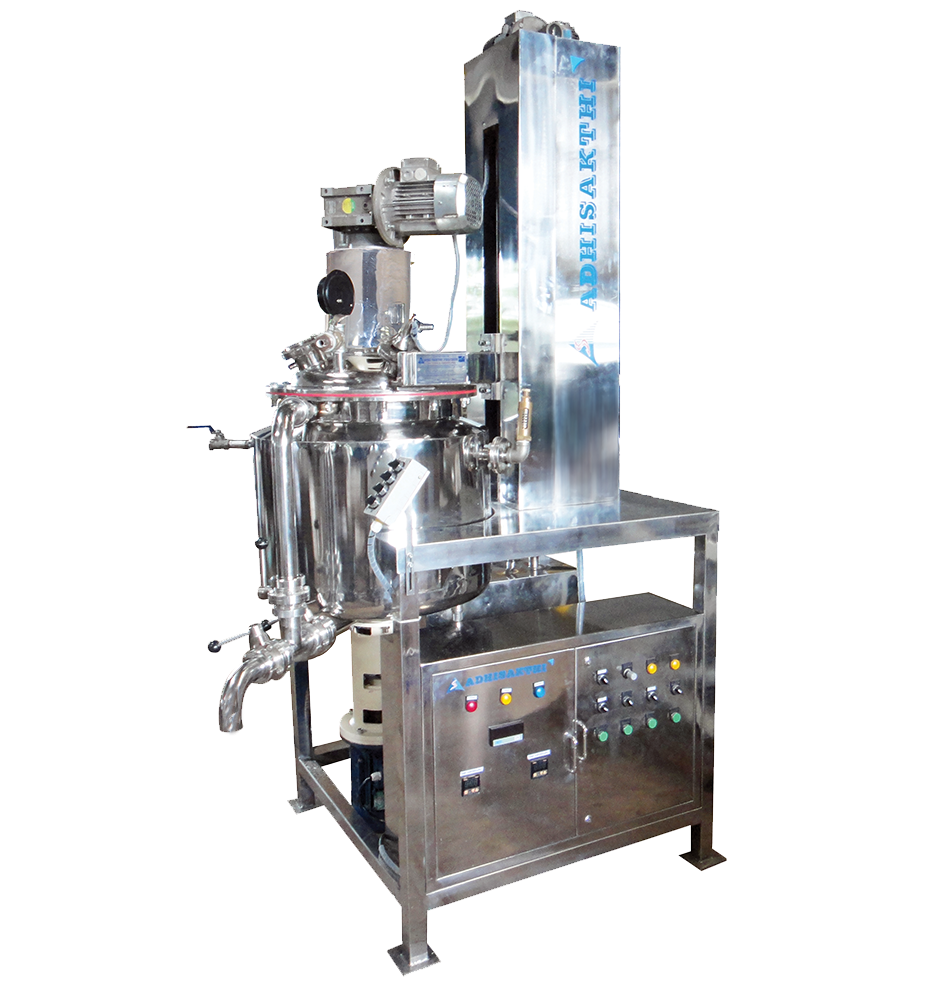

Contra rotary mixers
- Contra Rotary mixer – Heavy duty is a main manufacturing vessel for paste making
- It efficiently combines liquid and solid particles to paste/gel under Vacuum

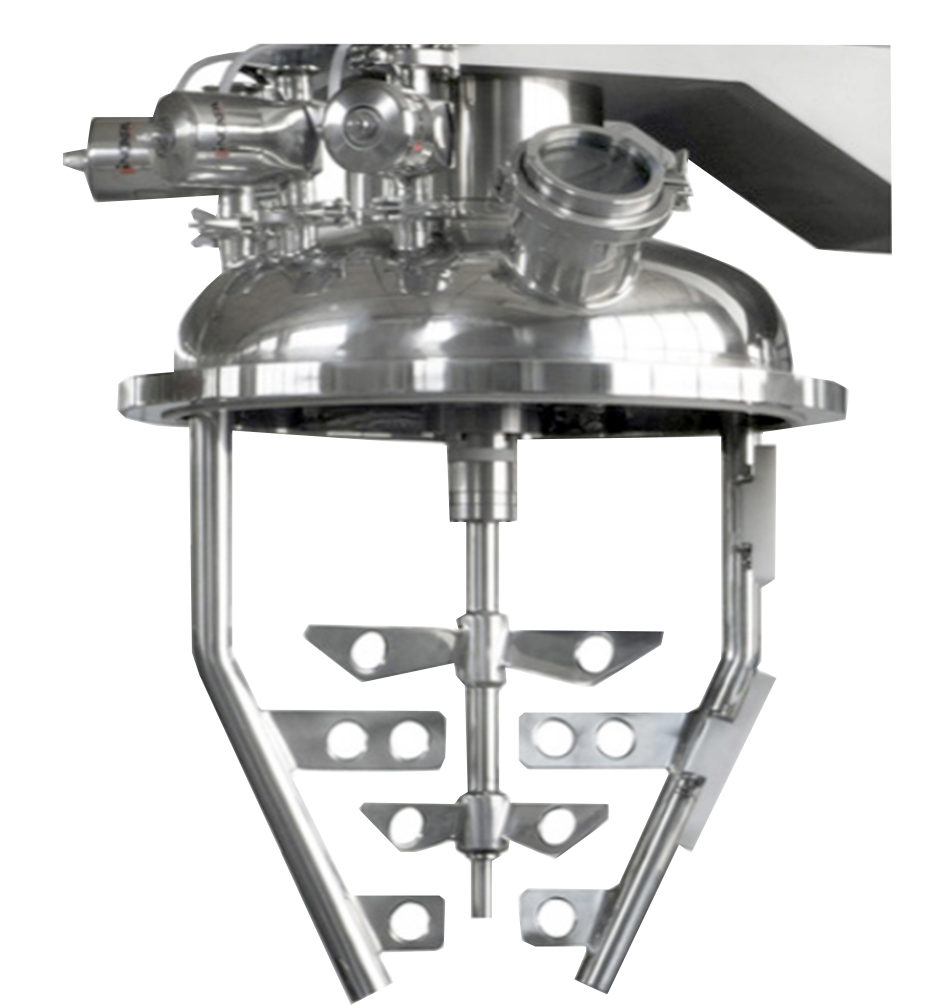

- Set of blades rotating opposite to each other gives turbulence for effective mixing
- Materials may be either charged open cover or by vacuum feed.
- Large quantities of material from phase vessel is sucked efficiently by vacuum
- Supported on 3 legs : 2 ” Size located at 120 deg equal angles
- Main Agitator motor : driven by suitable motor with both sets of blades
- Motor: Crompton/Kirloskar make – FLP and Gearbox – Radicon/Elecon/Shanthi
- Shaft is supported through a heavy duty bearing housing with mechanical seals
- Speed of the agitator: 11 to 40 External and 20 to 60 Internal provided with VFDs
- Bottom discharge valve is pneumatically operated and CIP optional extra
| Model | SCRM-MV-150 | SCRM-MV-250 | SCRM-MV-500 | SCRM-MV-1000 |
|---|---|---|---|---|
| Batch Size in kgs. | 150 | 250 | 500 | 1000 |
| Contact Parts | SS 316 | SS 316 | SS 316 | SS 316 |
| Minimum Batch Size | 75 | 150 | 300 | 600 |
| Power Required in KW | 2.2 | 3.7 | 5.5 | 7.5 |
| Dimension (DxH) | 650x900 | 850x950 | 1000x1300 | 1200x1700 |
| Top Lid Opening | Screw rod/ Hydraulic | Screw rod/ Hydraulic | NA | NA |
| Weight (Approx. ) in Kgs | 1250 | 1500 | 1750 | 2600 |
| In Built Heating System | Optional | Optional | Optional | Optional |
| Vacuum Pump (KW) | 2.20 | 3.75 | 5.50 | 7.50 |
| Type of Stirrer | Semi Contra/ Contra | Semi Contra/ Contra | Semi Contra/ Contra | Semi Contra/ Contra |
| Phase Vessel Attachment | Optional | Optional | Optional | Optional |
| Homogeniser | 3.70 | 5.50 | 7.50 | 11.20 |
| Stirrer Speed (RPM) | Up to 40 | Up to 40 | Up to 40 | Up to 40 |
| Homogeniser Speed (RPM) | Up to 2800 | Up to 2800 | Up to 2800 | Up to 2800 |
Phase Vessel
| Model | PHV-50 | PHV-150 | PHV-300 | PHV-600 |
|---|---|---|---|---|
| Batch Size in kgs. | 50 | 150 | 300 | 600 |
| Contact Parts | SS 316 | SS 316 | SS 316 | SS 316 |
| Minimum Batch Size | 30 | 75 | 200 | 350 |
| Power Required in KW | 0.75 | 1.1 | 2.2 | 3.75 |
| Dimension (DxH) | 500x700 | 650x750 | 800x1000 | 950x1350 |
| Top Lid Opening | Hemispherical | Hemispherical | Hemispherical | Hemispherical |
| Weight (Approx. ) in Kgs | 650 | 900 | 1150 | 1700 |
| Type of Stirrer | Propeller/ Anchor/ Schowl's | Propeller/ Anchor/ Schowl's | Propeller/ Anchor/ Schowl's | Propeller/ Anchor/ Schowl's |
| Stirrer Speed (RPM) | Up to 960 | Up to 960 | Up to 960 | Up to 960 |
