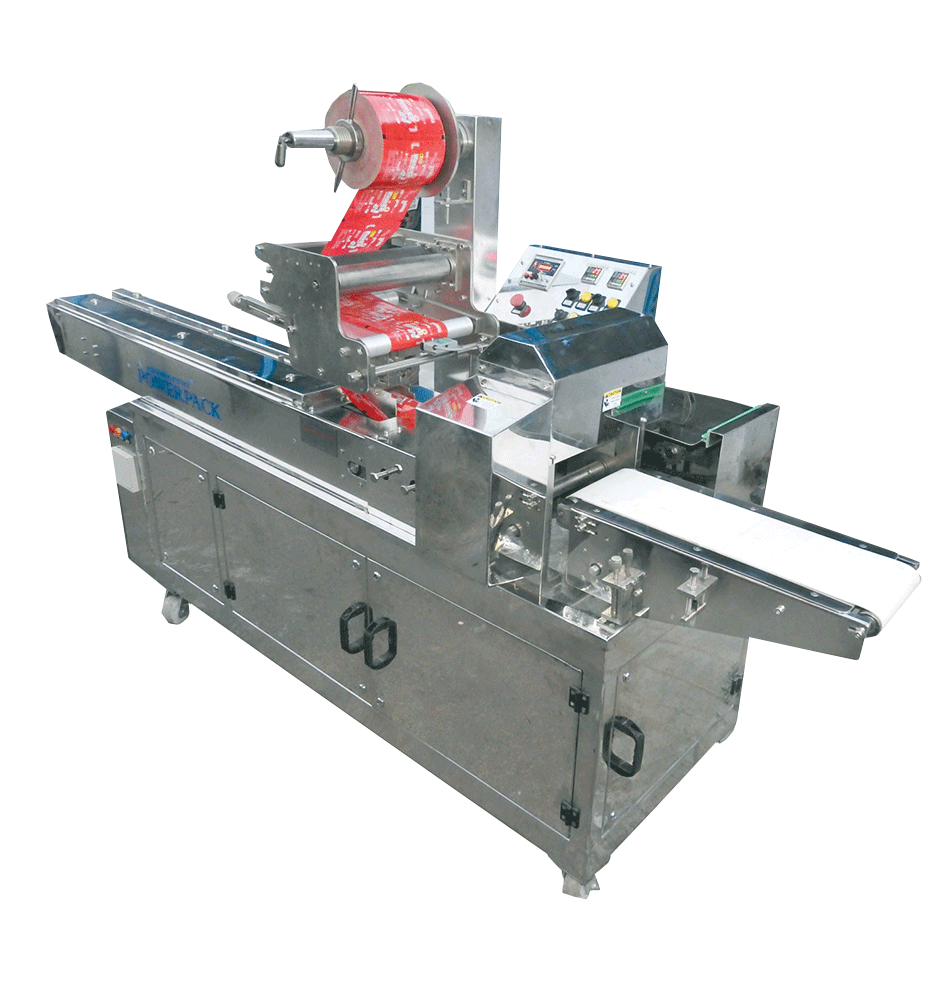

horizontal Flow Wrap Machine GMP model
- The horizontal flow wrap machines are designed to form and seal solid products tightly
- Basic machine with PIV drive enables easy adjustments of product change overs
- Product from chain lug conveyors are fed inside pouches formed in horizontal chute
- PID controllers ensure temperature accuracy for effective sealing performance
- User friendly change over system
Horizontal Flow Wrapping Machine (HFM-PIV-100-S-SPL)-Pharma
| HORIZONTAL FLOW WRAP MACHINE-GMP MODEL | 100 pcs/min |
|---|---|
| Model No | HFM-PIV-100-S-SPL |
| Capacity | Up to 100 Pieces/min |
| MOC | Contact Parts SS304 |
| Power required | 4.5 KW |
| Controller unit | PLC/HMI |
| PID Controllers | Provided, for effective sealing performance |
| Sealing | Three pairs, horizontal sealing, and cross sealers with cartridge heaters |
| Batch coding | Option provided at extra cost |
| Auto product in feed | Option provided at extra cost |
| One set of changeover parts | Provided |
| Side covers | Provided, SS304. |
